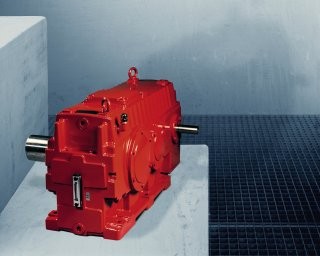

M Series Parallel Shaft Gear Units
M series
With its nine sizes, the M series covers a torque range of 53,000 to 1,600,000 lb-in. The M-series delivers high power, high thermal ratings, resulting in high performance. With both vertical and horizontal gear unit designs, the M-series is especially suitable for a broad range of applications.
With its nine sizes, the M series covers a torque range of 53,000 to 1,600,000 lb-in. The M-series delivers high power, high thermal ratings, resulting in high performance. With both vertical and horizontal gear unit designs, the M-series is especially suitable for a broad range of applications.
Your advantages
- High power density
- High torque transfer capacity
- Finely graduated torque
- Modular platform
- Extensive pre-designed options and accessories
- Split case design for ease of maintenance
- Worldwide service
|
Technical data
|
|||
|---|---|---|---|
|
Gear unit version
|
Stages
|
Reduction ratios
|
Rated torque MN2 (lb-in)
|
|
M.P.. helical gear units
|
3 and 4 stages
|
6 to 400
|
53,000 to 1,600,000
|
|
M.R.. bevel-helical gear units
|
3, 4 and 5 stages
|
14 to 1800
|
53,000 to 1,600,000
|
